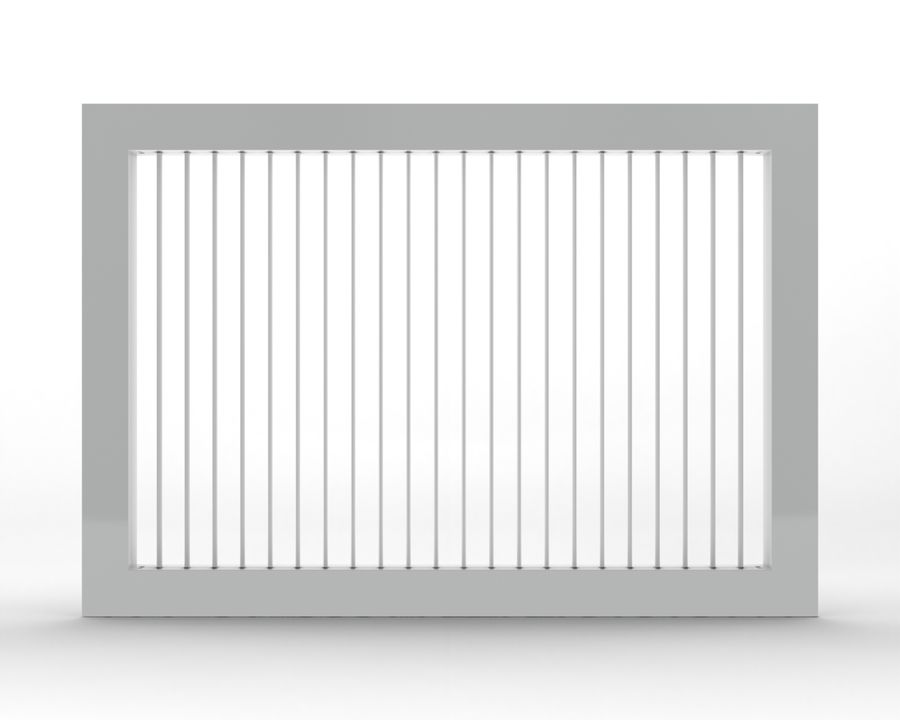

RA192LW — Horizontal/Vertical Lever Operated Multi-Shutter Valve
RA192LW — Horizontal/Vertical Lever Operated Multi-Shutter Valve
Assets/Details
Submittal Data (81 KB, PDF)
- Extruded aluminum construction
- Single row of individually adjustable horizontal face bars
- Pivoted bars for easy positive setting
- Lever-operated, multi-shutter valve
- Bright White or Satin Anodized finish
- Flat frame option standard, stocked as current
- Damper depth is slightly greater (1/4”), where applicable
- Also available in special order Z-Frame
Add a Z to the beginning of the model number
Available Sizes
| Height | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Width | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | |
| 4 | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| 5 | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| 6 | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| 8 | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | ||
| 10 | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |||
| 12 | • | • | • | • | • | • | • | • | • | • | • | • | • | ||||
| 14 | • | • | • | • | • | • | • | • | • | • | • | • | |||||
| 16 | • | • | • | • | • | • | • | • | • | • | • | ||||||
| 18 | • | • | • | • | • | • | • | • | • | • | |||||||
| 20 | • | • | • | • | • | • | • | • | • | ||||||||
| 22 | • | • | • | • | • | • | • | • | |||||||||
| 24 | • | • | • | • | • | • | • | ||||||||||
| 26 | • | • | • | • | • | • | |||||||||||
| 28 | • | • | • | • | • | ||||||||||||
| 30 | • | • | • | • | |||||||||||||
| 32 | • | • | • | ||||||||||||||
| 34 | • | • | |||||||||||||||
| 36 | • |
